Worm Gear Motor With Encoder

The turbine metal gear worm motor adopts a metal gearbox, which is durable and durable. Due to the special mechanical structure of worm drive, the output shaft is self-locking and cannot rotate. Adopting a two wire connection, supporting directional control and PWM speed control. The rated voltage is 12V, reaching 60RPM. The Worm Gear Motor With Encoder uses precious metal carbon brush magnets, with long service life, low noise, high torque, stable and reliable performance, and can be equipped with encoders, drivers, gearboxes, etc. It can be customized according to customer needs, such as speed, voltage, power, output shaft, etc. If you want to reduce the speed of the motor, VSD factory will be your best choice.



Worm Gear Motor is a motor system that typically consists of a motor and a gearbox. It has a special gear combination, including worm gear and worm gear. These two gears work closely together to generate sufficient torque output. It has a high torque output and can cope with various high load situations. The output speed slows down and does not generate a large amount of heat, thereby reducing heat dissipation problems. In addition, it has good characteristics of preventing reverse operation, as the gear system can counteract the influence of external forces. Because of its unique design, it is often used to control a large number of mechanical equipment and moving parts, and can be used in robots, car seats, household appliances and other fields, such as camera head, automatic door, electric curtain, projection curtain, etc. By selecting different combinations of motors and gears, different output effects and forces can be achieved.

Motor Parameter

Model	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
YGF42BL2430	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
	24	50	0.25	652	0.56	1.28	0.72	14.52	0.72

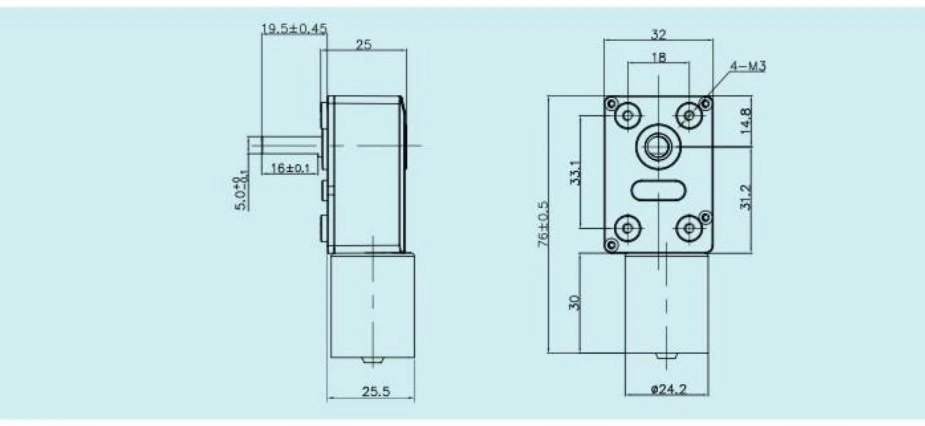

Product Size

Performance Curve

The information provided above is intended for guidance purposes only. The speed, voltage, torque, shaft length, and other specifications can be customized to meet the specific requirements of our customers. If you are interested in testing the performance of our products, please do not hesitate to contact us for a sample. We look forward to working with you.

Product Features

1. Use 2430 brushless motor, rated voltage 12V, no-load speed 50RPM, no-load current ≤0.10A, rated torque 10 kgcm, body size 76x32x24 mm
2. It has high torque and precise rotation control ability. It is also equipped with an encoder, which can provide accurate position feedback signals, and is suitable for application scenarios that require precise control of rotational position and speed.
3. The high-efficiency worm gear reducer is adopted, which can convert the output of high-speed rotation into the output of low-speed and high-torque. High-precision gear manufacturing process ensures stable and reliable transmission performance and long life.
4. The brushless geared motor is also equipped with a high-precision encoder inside, which can provide accurate position feedback signals. Through programming control, precise rotation position and rotation speed control can be achieved, which is suitable for application scenarios that require high-precision control, such as robot motion control, CNC processing equipment, etc.
5. Worm Gear Motor With Encoder is compact and lightweight, simple in structure, easy to install and maintain, and also has the characteristics of high efficiency, high precision and high reliability, and is suitable for various industrial automation and mechanical control application scenarios.

Company Strength

It is composed of a motor, a worm drive, and a casing. By reducing the high-speed rotation of the motor to a lower speed, the drive torque is increased, making it suitable for driving many heavy machinery. Production mainly includes the following steps: First, select high-quality raw materials, and carry out fine processing and production to ensure that high-quality machines are assembled. Second, combine the motor with the worm drive and install it in the housing. Then, rigorous testing and testing are carried out to ensure that the quality and performance of the products are up to standard. Finally, the product is packaged, labeled, and sent to the point of sale or directly to the user.
It has the characteristics of compact structure, stable operation and low energy consumption, which can help users improve product production efficiency and reduce production costs. Widely used in many industries, including factory automation equipment, conveyors, cranes, food packaging machines, etc., it is a motor with both reliability and safety.





Some of our partners

We are ecstatic to collaborate with you as a long-term partner in China. We have a long history of supplying high torque DC gear motors to the majority of the European and American markets.

Application

This 24 volt reduction motor can be applied to scenarios that require precise control of speed and position, such as:

1. Robotics industry

2. Automated production line: It can provide high-precision control, thereby improving production efficiency and quality.

3. Aircraft: It can provide fast and precise attitude adjustment to ensure the stability and safety of the aircraft.

4. Medical equipment: It can provide precise control to ensure the safety and accuracy of medical equipment.

In summary, turbo motors with encoders can play an important role in scenarios that require high-precision position and speed control.

Transport Packing

Customer feedback：I recently purchased a turbo reducer motor with an encoder from the VSD motor factory for my robot project. I would like to share my purchasing and usage experience.

Firstly, I would like to say that the purchasing process is very smooth and simple. The sales representative was very enthusiastic and professional, and they explained in detail the characteristics and application scenarios of different models and specifications of turbo reduction motors. And we carefully inquired about my needs and designed a suitable motor for my product. Through communication and comparison, we ultimately chose this BLDC reduction motor because it is very stable and accurate in speed control and position feedback.

After the turbo motor arrived, I began testing its performance. Its operation is very smooth and quiet, without any noise or vibration. Secondly, its speed control is very precise, which can meet the high-speed and low-speed movements required for my robot project. Most importantly, the design with encoder provides very accurate position feedback, which is crucial for my specific application.

I am very satisfied with this micro reduction motor. It provides stable power and accurate position feedback for my project, allowing me to control the motion of the robot more finely. If you want to purchase any size of DC motor, I strongly recommend purchasing from Vshida. They will match or customize the design according to your needs. If necessary, they will develop a DC motor suitable for your product. The service attitude is very good, and the quality is the best among the same prices.

Payment & Delivery

Notes

Brushless DC gear motor with encoder are best suited for applications requiring continuous (constant) operation.

Geared motor performance is largely affected by the motor's ability to dissipate heat and avoid thermal overload, which can damage internal components and even demagnetize magnets. Correct sizing and selection is the first step in ensuring that the motor is not at risk of thermal overload within the application parameters

Red wire - motor power positive (+)

Black Wire - Motor Power Negative (-)

Yellow wire - FG output

        Orange wire - control motor CW or CCW (CCW: orange wire is not connected. CW: orange wire is connected to the negative power supply of the motor (-))

        White line - control motor speed (speed controlled by PWM signal)



Note: Because it is a brushless motor, the wires cannot be connected incorrectly, otherwise it will burn.



CW: red wire --> motor positive power supply (+); black wire and white wire---> motor power supply negative electrode (-)



CCW: red wire --> motor positive power supply (+); black wire, white wire, orange wire---> motor power supply negative electrode (-)

Stalled rotor just means that the gearbox is relatively strong, can withstand overload, and can't get stuck (many geared motors can't do it). Stalling is a damage test for DC motors, it cannot be blocked frequently or for more than 2 seconds, otherwise the motor will be burned. In order to avoid the phenomenon of burning, it is generally protected by a fuse, and the choice of the fuse depends on the specific model and usage method.
The motor is a micro DC motor, Worm Gear Motor With Encoder, the direction of rotation can be changed by changing the positive and negative of the motor wiring. It has two characteristics:
1. The worm gear motor is self-locking, that is, the output shaft of the motor is self-locking when there is no power.
2. The direction of the output shaft of the gearbox is perpendicular to the motor shaft. The direction of the output shaft of the entire motor body is ultra-short than ordinary geared motors.
