37mm Micro DC Gear Motor 24 Volt
Outer Diameter: 37mm,
Length: 57mm,
Shaft Type: D Shaft
The reduction ratio can be customized (6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810)
37mm miniature DC geared motor 24V is widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, aircraft model, toy model, robot and other fields. We have many years of experience in the production and development of micro-motors, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | GB37-555SH |
Usage | Medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toy models, robots and other fields, with complete reduction ratios |
Type | Brushless motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized |
Efficiency | 90% |
Bearing | ball bearing |
Rated speed | 4000 (rpm) |
Rated Voltage | 24 (V) |
Start Current | 2.783 A |
Start torque | 92.329 (NM) |
Dimensions | 37*57 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | ROHS |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | |||||
NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
24 | 4000 | 0.15 | 3241 | 0.641 | 17.511 | 5.944 | 92.329 | 2.738 |
Product Size
Customizing Item
Output shaft, Lead wire, Connector, Mounting hole, Speed
If you need to match the driver, encoder, gear box, please contact us!!!

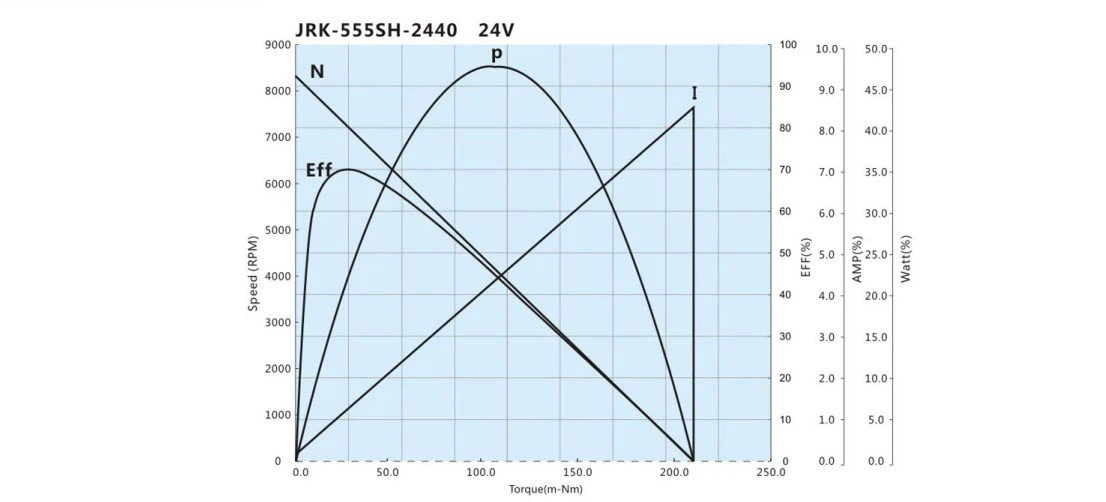

Performance Curve
The above specifications are for reference only, the type and parameters of the specific gear motor can be customized
Product Features
Smooth rotation, wear resistance, large transmission torque, high speed regulation accuracy, long service life, low vibration, convenient speed regulation, support for forward and reverse rotation, low energy consumption, compact mechanical structure, high cost performance, complete reduction ratios and customizable technical data
Product Details
| 100% actual photos |
|
Rotor: pure copper wire wound, high-quality iron core, high temperature resistance, reduce energy loss, reduce current resistance | End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect. | |
| 100% actual photos |
|
Bearing: choose brand bearing, quality is guaranteed (bearing can be customized) | Chassis: choose high-quality materials with high hardness, corrosion resistance, wear resistance and rust resistance, and have a longer service life |
12 Volt Geared Motor Features
1. High-quality metal materials with good memory resistance, durability and noise reduction are used to prolong the service life of the gearbox. The output shaft is 1140 steel, which is more durable and wear-resistant.
2. The high-quality bearing steel reduces the friction between the roller and the shaft wall, has a higher rotation speed, is not easy to generate heat, has a higher bearing capacity, and is not easy to fade and rust.
3. High-precision rotation, using high-quality materials to form the rotor at one time, with high electrical conductivity, long wear-resistant life, high temperature resistance, and stable rotation speed.
4. The working voltage range is wide, the brushless motor has low noise, large torque and long life.
5. The D-type output shaft is made of 45 steel to improve the service life. Metal gear; matching speed regulation; high-quality magnetic tile; super torque; pure copper coil; forward and reverse.
Company Strength
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
