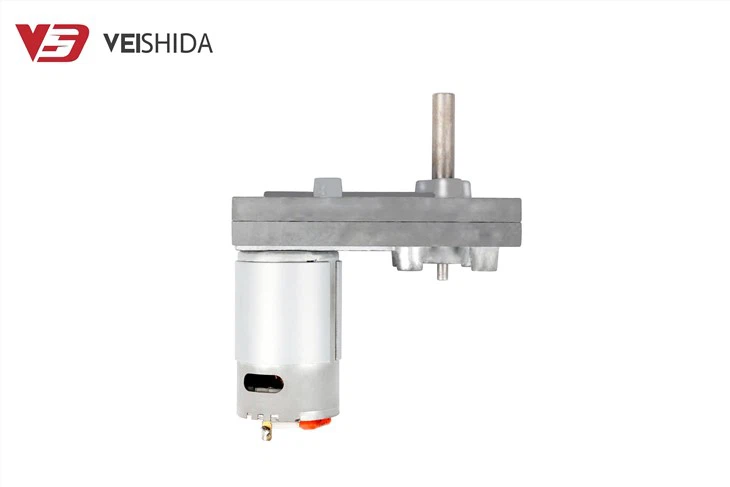

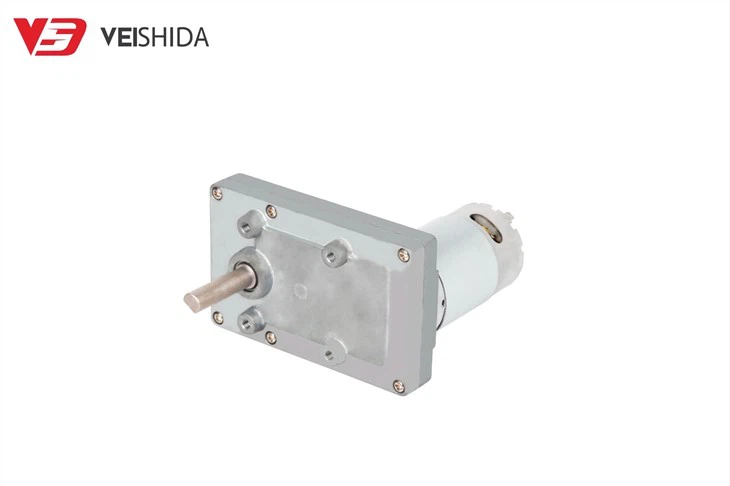

555 Metal Gear Motor
Suitable voltage: 12V-24V
Speed: 10-20-40-80 RPM/min
Weight: 502g
Model: DCmotor RS-555
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
No-load speed of 555 metal gear motor: DC12V 3000-3500r/min, DC 24V 7000-8000r/min, shaft length: 16mm, load current: 2.5A, size: diameter: 37mm, length: 65mm; weight: 502g; shaft length : 16mm; has the characteristics of high torque, low noise, long service life, stable performance, high cost performance, Wide used for the power of electric-drive curtain, electric ovens, popper, model tank, can customize the output shaft, speed, voltage, Leads, lead terminals, power, etc. If you need matching drivers, gearboxes, encoders, don't hesitate, please contact us immediately.
Company Highlights
Overview
Warranty | 3 months - 1 year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
Model Number | VSD-G555 |
Usage | electric-drive curtain, electric ovens, popper, model tank, etc. |
Type | Gear motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless/brush |
Protect Feature | Customized(Waterproof, fireproof, fully enclosed） |
Efficiency | 90% |
Bearing | ball bearing |
| Shaft length | 16mm |
Rated speed | 6-3000 (rpm)(Customized） |
Rated Voltage | 24 (V) |
Load current | 2. 5 A |
| Weight | 502g |
| Dimensions | 37*65 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF16949 |
Customized | Acceped |
Product Description
Create a minimum of one new motor per month.
Motor Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | |||||
NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
24 | 3500 | 0.15 | 2841 | 0.64 | 16.5 | 5.92 | 95.326 | 2.738 |
Product Size
Customizing Item
Output shaft, Lead wire, Connector, Mounting hole, Speed
If you need to match the driver, encoder, gear box, please contact us!!!
Performance Curve
The aforementioned details are simply for reference; a specific gear motor's kind and settings can be customized.
Product Details
| 100% actual photos |
|
Rotor:Pure copper wire that has been wound around a premium iron core has low energy loss, low current resistance, and high temperature resistance. | End cap: increase heat dissipation, repair the motor's rotor, and extend product life, use premium raw materials. | |
| 100% actual photos |
|
Bearings: Choose a reputable bearing brand to ensure quality, and bearings can be customized (oil bearing/ball bearing) | Chassis: Select materials of excellent quality that are hard, resistant to rust, corrosion, wear, and wear-and-tear, and have a longer service life. |
Product Features
1. The 555 metal gear motor has the characteristics of high speed, high torque, low power consumption and low noise.
2. The machine has simple structure, convenient maintenance and long service life.
3. Widely used in the power supply of electric curtains, electric ovens, popper, model pots
4. The reducer has simple structure, convenient installation, high feeding efficiency and reliable operation.
Company Strength
With the assistance of contemporary automated production lines, we have more than 500 trained staff and a monthly productivity of more than 4.5 million motors. Additionally, we have sophisticated quality control procedures in place with more than 300 high-end machines of various types to guarantee that the motors adhere to CE, REACH, and RoHS regulations.
Product Certificate
Some of our partners
We are thrilled to work with you in China as a long-term partner. For many years, we have been committed to providing the bulk of the European and American markets with the high torque DC gear motor.
Why choose us?
Application
Micro motors have a very broad range of applications, and the models can be altered for various use scenarios. Please get in touch with us if you have any particular requirements.
Transport Packing
Foam packing that is shockproof; appropriate carton size. Please get in touch with us ahead of time if you need special packing services.
Payment & Delivery
Note
555 Metal Gear Motor any import or export duties and remote area delivery costs will be borne by the buyer as it is difficult to know all country duties or remote areas before shipping.
1. Shipping method. Items are shipped via SpeedPAK or E-packet or any other shipping method suitable for your country and we will choose the reasonable method for you.
2. Delivery times may vary by country and international shipping may be much slower than expected in some countries. Additionally, your local customs may delay shipments due to customs duties charged to you for importing this item from other countries.
3. Please note that buyers in some countries may need to contact us before payment.
If you have other needs, please contact us and reply to your inquiry within 24 hours. Our professional customer service team guarantees you a satisfactory solution for any questions.
