Drone Motor Speed, Torque, and Speed: Understanding Core Performance Parameters



When purchasing or using drone motors, many people's first reaction is to check the "KV value" and "maximum thrust", but they often overlook the fundamental factors behind those values: motor speed, torque, and flight velocity - the true performance-defining parameters of any drone.



These three factors interact with each other and jointly determine the aircraft's response speed, load capacity, energy efficiency, and flight stability. In simple terms:

Speed (RPM): determines how fast the propeller rotates;



Torque (Nm): determines how big the propeller can be driven and how much load it can withstand;



Flight speed: It is not determined solely by the rotation speed, but is the result of system coordinated control.



For different application scenarios such as industrial aerial photography, reconnaissance, mapping or cross-country racing, how to match the appropriate motor speed platform and torque output range according to task requirements is a very critical link.



In our previous article, we have mentioned that mainstream drone motors use brushless DC motors (BLDC) , which achieve high-speed rotation by adjusting voltage and control signals. However, during actual flight, the motor does not always run at no load. It is affected by multiple factors such as blade load, air resistance, and ESC response, and the speed and torque also change dynamically.



If you want to further improve flight efficiency, extend flight time or increase load-carrying capacity, "KV value" alone is far from enough. Only by understanding the substantial performance of speed and torque can you truly make a well-founded selection and achieve stable performance.



In the parameter table of drone motors, KV value (RPM/V) is one of the most common performance indicators. It indicates the theoretical speed that the motor can generate for every 1V input voltage under no-load conditions, and the unit is "RPM per Volt".



For example, a motor with a KV value of 1000 has a theoretical no-load speed of 10 × 1000 = 10,000 rpm at 10V.



It should be noted that:

The higher the KV value, the faster the no-load speed, which is suitable for high-speed, light-load flight, such as flying drones.



The lower the KV value, the slower the speed per unit voltage, but it can produce higher torque, which is suitable for aerial photography platforms with heavier loads and more stable flight.



However, the KV value serves only as a theoretical reference under no-load conditions. Once in the actual flight environment, the motor will be affected by many factors such as propeller load, ESC current limiting, battery discharge capacity, etc., and the actual speed will usually be lower than the theoretical value.



Therefore, when selecting a motor, one should not only look at the numerical value of the KV value, but also make a comprehensive judgment based on factors such as the voltage platform, ESC settings, propeller parameters, etc., in order to truly understand the working status and performance potential of the motor.



When many people first learn about drone motors, they will apply a seemingly simple formula:

Theoretical speed (RPM) = voltage × KV value



This formula is basically valid under no-load conditions. For example, for a motor with a KV value of 1500, when powered by a 6S battery (22.2V), the no-load theoretical speed should be:

1500 × 22.2 = 33,300 rpm



But the problem is: the motors never run at no load when the drone is flying.



During actual flight, the motor is affected by a variety of load and environmental factors, and its speed is often lower than the theoretical value. Specifically, the following factors are involved:

Propeller load: The larger and heavier the propeller, the greater the resistance and the more obvious the speed drop;



Air resistance and altitude: Changes in air density will affect propeller efficiency and indirectly affect motor speed;



Battery voltage drops: Under high load or long-term flight, the voltage will drop and the speed will drop simultaneously;



ESC control strategy: Some flight control strategies do not allow the motor to run at full speed, but optimize efficiency;



Motor temperature rise: When the temperature rises, the internal resistance increases, which will also slightly affect the speed performance.



If you are selecting or analyzing performance, it is far from enough to rely solely on the calculation of "KV × voltage". We recommend using the measured thrust data of VSD drone motors to make a comprehensive judgment, which includes not only KV value, power, and current, but also the actual speed and thrust output performance under different blade combinations.



This "load-speed curve" tells you more about the motor's true capabilities than a single number ever could.



Torque is a key parameter to measure the driving force of a motor. It represents the "rotational force" exerted by the motor shaft. If the speed determines "speed", then the torque determines "what can be driven".



In drones, the motor does not rotate alone, but drives the propeller. The process of the propeller cutting through the air and generating lift essentially relies on the torque provided by the motor.



In simple terms:

Thrust ≈ Torque × Propeller Diameter × Pitch Load

Note: This is a simplified conceptual formula; in practice, thrust generation also depends on air density, propeller shape, and rotational speed.



This means:

At the same speed, the greater the torque, the more powerful the propeller;



Insufficient torque can also cause propeller speed lag, slow flight response and increased energy consumption.



It should be noted that high torque ≠ high KV value. On the contrary, in actual applications, low KV value + high current input is more likely to bring high torque performance, which is why large aerial photography drones often use motor solutions with KV in the range of 300~500.

If the torque is insufficient, the motor cannot drive the large propeller even if the KV value is high;



For example, in our VSD 5315 brushless motor, with a 6S~12S voltage platform, we can achieve a maximum thrust of up to 9034g. It is through the matching of low KV value and high current that strong torque is released, thereby driving the large-size blades to fly stably.



Many people believe that the flight speed of a drone is mainly determined by the motor speed. The higher the speed, the faster it flies. In fact, this view is only partially correct.



For multi-rotor drones, the flight speed is determined by multiple factors:

Aircraft attitude: The tilt angle of the fuselage directly affects the thrust distribution and forward speed;



Control algorithm: The flight control system achieves stable and efficient flight by adjusting the motor speed and angle;



Propeller efficiency: The design of different propeller blades affects aerodynamic characteristics, which in turn affects speed and endurance.



Therefore, simply increasing the motor speed will not significantly increase the drone's maximum flight speed. In fact, excessive motor speed may lead to:

The efficiency is reduced because the energy loss of the motor and the blades increases at high speeds;



Increased energy consumption affects battery life;



The flight control is difficult to control accurately, which may reduce flight stability.



To improve the overall flight speed of the drone, it is necessary to comprehensively optimize the motor performance, propeller design and flight control algorithm to ensure the coordinated and efficient operation of the system.



When purchasing or using drone motors, many people tend to fall into the misunderstanding of only looking at a single parameter. In fact, the evaluation of motor performance must integrate multiple core indicators to truly reflect its applicability.



1. KV value, torque, and actual speed - all are indispensable factors in performance evaluation.

The KV value represents the theoretical speed level of the motor when it is unloaded, but it does not represent the actual working state;



Torque reflects the driving force of the motor when it is loaded and is a key factor in thrust generation;



Only when these three are combined can the performance of the motor be fully understood.



2. Reasonable selection according to application scenarios

Racing drones usually use high-KV, high-speed motors to achieve faster response and higher speed;



Industrial aerial photography and load-carrying drones pay more attention to torque and stability, and often choose low KV, high torque models to ensure high thrust and endurance;

The speed reflects the operating speed of the motor under actual load and voltage conditions, and determines the flight response speed.



Multi-purpose platforms need to strike a balance between speed and torque to meet diverse mission requirements.



3. Refer to the manufacturer's complete test report and actual flight feedback

Theoretical data is important, but the performance in actual use can better reflect the quality of the motor. Suggested users:

Combined with the manufacturer's detailed test report, understand the specific data of the motor under different voltages and loads;



Refer to actual flight feedback from pilots or users to evaluate the stability and durability of the motor.



Only through scientific and comprehensive judgment can you ensure that you choose the drone motor that best suits your needs.



When choosing a reliable drone motor, you should not only pay attention to the performance indicators, but also the manufacturer's production strength and technical support. As a professional drone motor manufacturer, VSD provides high-quality, customized brushless motor products to global customers with years of R&D experience and a complete quality management system.



Advantages of VSD:

Rich product lines, covering from low KV to high KV, to meet a variety of application needs;



Strict quality control ensures that each motor has stable performance and long service life;



Professional customization capabilities, adjusting parameters and designs according to customer needs, supporting multiple specifications;



Complete after-sales service, providing technical support and test data, helping customers solve problems quickly.



Recommended Drone Motors from VSD

model	KV value range	Voltage range	Maximum power (W)	Maximum thrust (g)	Applicable scenarios
5315 Drone Motor	380KV	6S~12S	4257	9034	Industrial multi-rotor drone
4720 Drone Motor	420KV	6S~8S	3037	7232	Aerial photography and medium-sized payload drones
3115 Drone Motor	900KV/1050KV/1520KV	5S~8S	1617	4185	Racing and Lightweight Drones

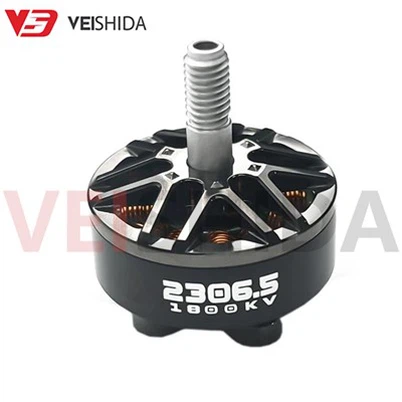

2306 Drone Motor	1800KV~2400KV	4S~6S	901	1683	FPV Racing Drone
2808 Drone Motor	1300KV~1950KV	6S	1623.5	2910.4	Multi-purpose light payload drone

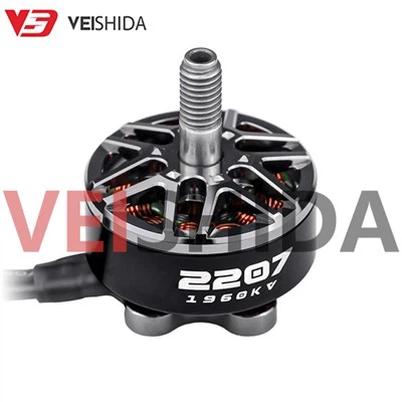

2207 Drone Motor	1960KV	6S	902.48	1702.7	FPV Racing Drone

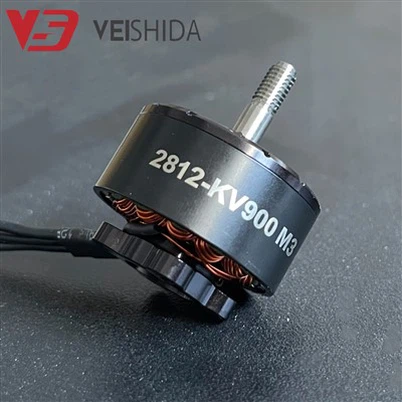

2812 Drone Motor	900KV	6S	1010	2710	Medium multi-rotor drone
2807 Drone Motor	1350KV~1750KV	4S~6S	1436	2728.4	Multi-purpose light payload drone



Whether you need high thrust for industrial applications or high speed racing, VSD can provide corresponding professional solutions.
